American Solar Surface Pumping • Est. 1983

Solar Surface Pumps Lineup

Dependable, high-efficiency DC solar surface pumps engineered and hand-assembled in Oklahoma for over 40 years. Life expectancy of 15–20 years with regular maintenance, field-rebuildable wear parts, and ultra-high vertical lift.

All Products CatalogSolar Surface Pumps (5)OEM Accessories (3)Sizing Assistant Compare All Models

100% Made in USAElk City, OK manufacturing & hand-assembled precision

PV-Direct & Battery Direct12V, 24V, 48V DC high-efficiency permanent magnet motors

960 ft Extreme LiftIndustry-leading surface lift up to 416 PSI (293 m TDH)

15–20 Year Service LifeField-rebuildable pump heads with regular maintenance

Surface Solar Pumps • Engineered in USA

Complete Surface Pump Lineup

High-efficiency positive displacement, rotary vane, and centrifugal solar surface pumps designed for off-grid domestic water, livestock ranching, high-volume irrigation, and extreme vertical lift.

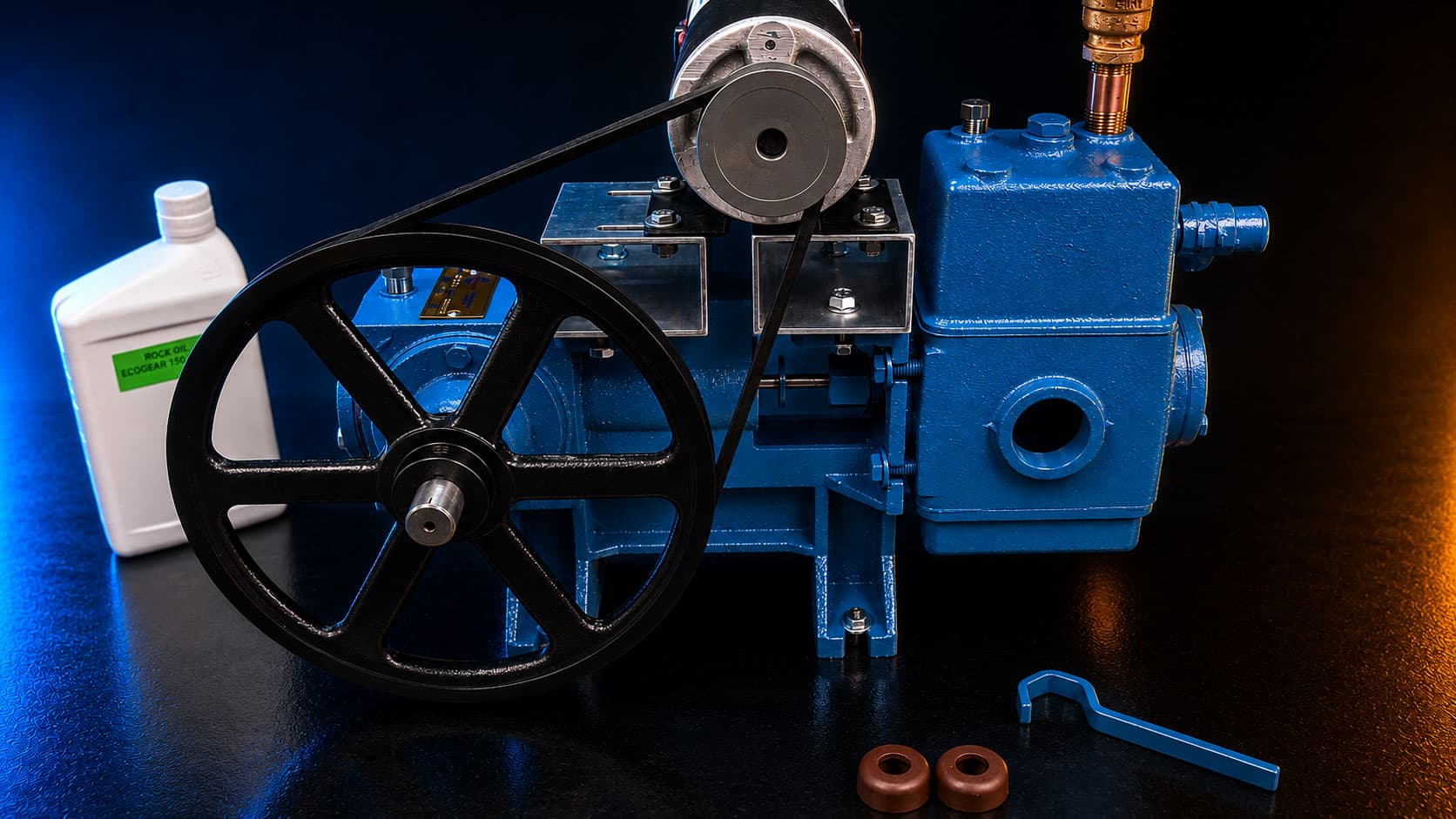

⭐ Dankoff Flagship

Dankoff's flagship surface pump delivering up to 75% higher efficiency than centrifugal alternatives. Delivers strong volume directly from solar panels in low-light conditions with 15–20 year life expectancy with regular maintenance.

Up to 9 GPM (34 LPM) & 230 ft (70 m) TDH / 100 PSI
Dirt and dry-run tolerant positive displacement design
15–20 year service life with field-rebuildable wear parts

Max Head (TDH)230 ft (70 m) / 100 PSI

Max Flow Rate5 – 9 GPM (19 – 34 LPM)

Operating Voltage12V, 24V, 48V DC

Primary UseRanch, Irrigation & Home

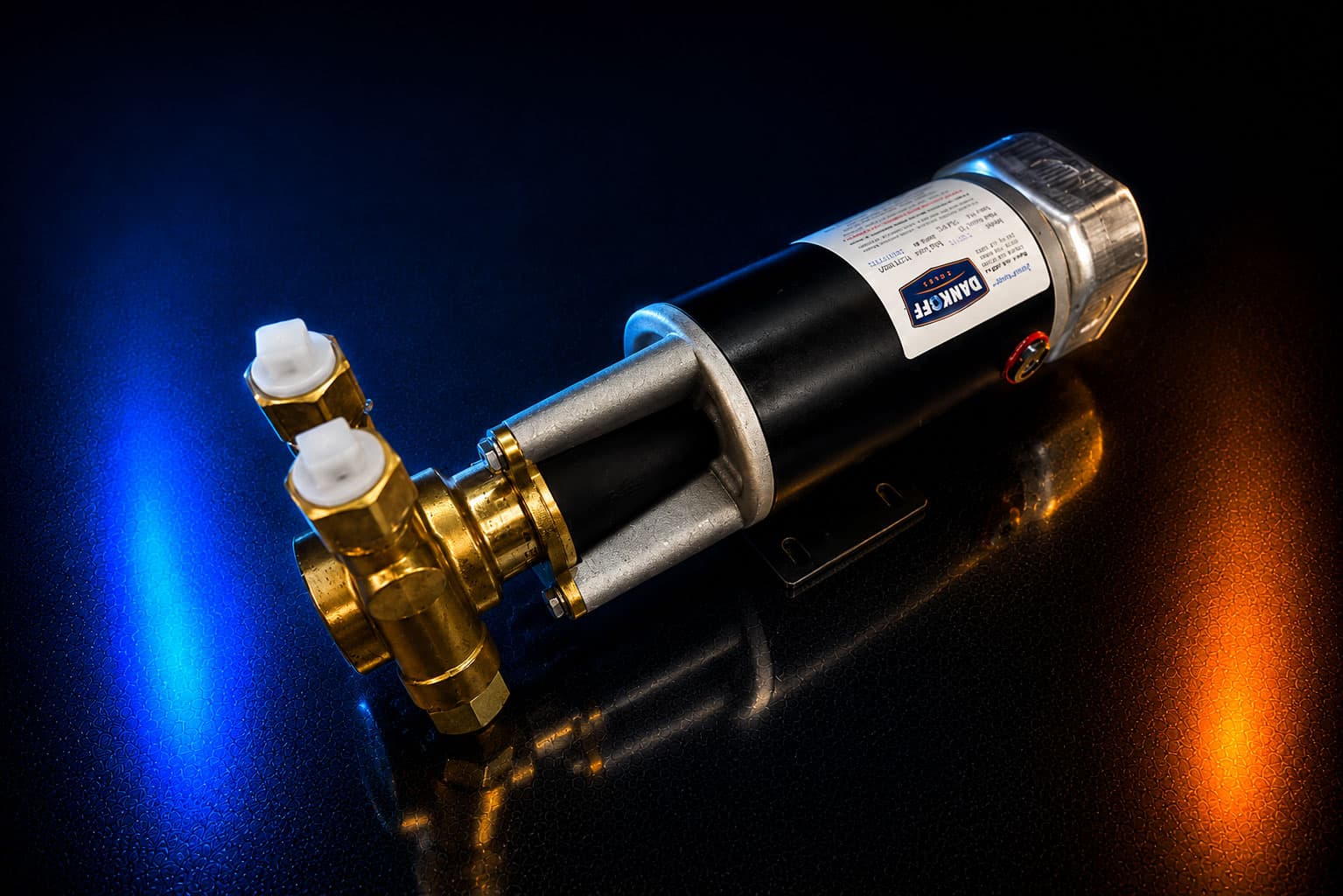

Deep Surface Lift

The pioneer of solar surface pumping since 1983. Draws water from shallow wells, streams, or springs with minimal solar array wattage and pushes up to 450 vertical feet.

High vertical lift up to 450 ft (137 m) TDH
Operates on as little as 100–300W of solar PV
Self-priming rotary vane design with replaceable brushes

Max Head (TDH)450 ft (137 m) / 195 PSI

Max Flow Rate0.5 – 6.3 GPM (2 – 24 LPM)

Operating Voltage12V, 24V, 48V DC

Primary UseLivestock Tanks & Springs

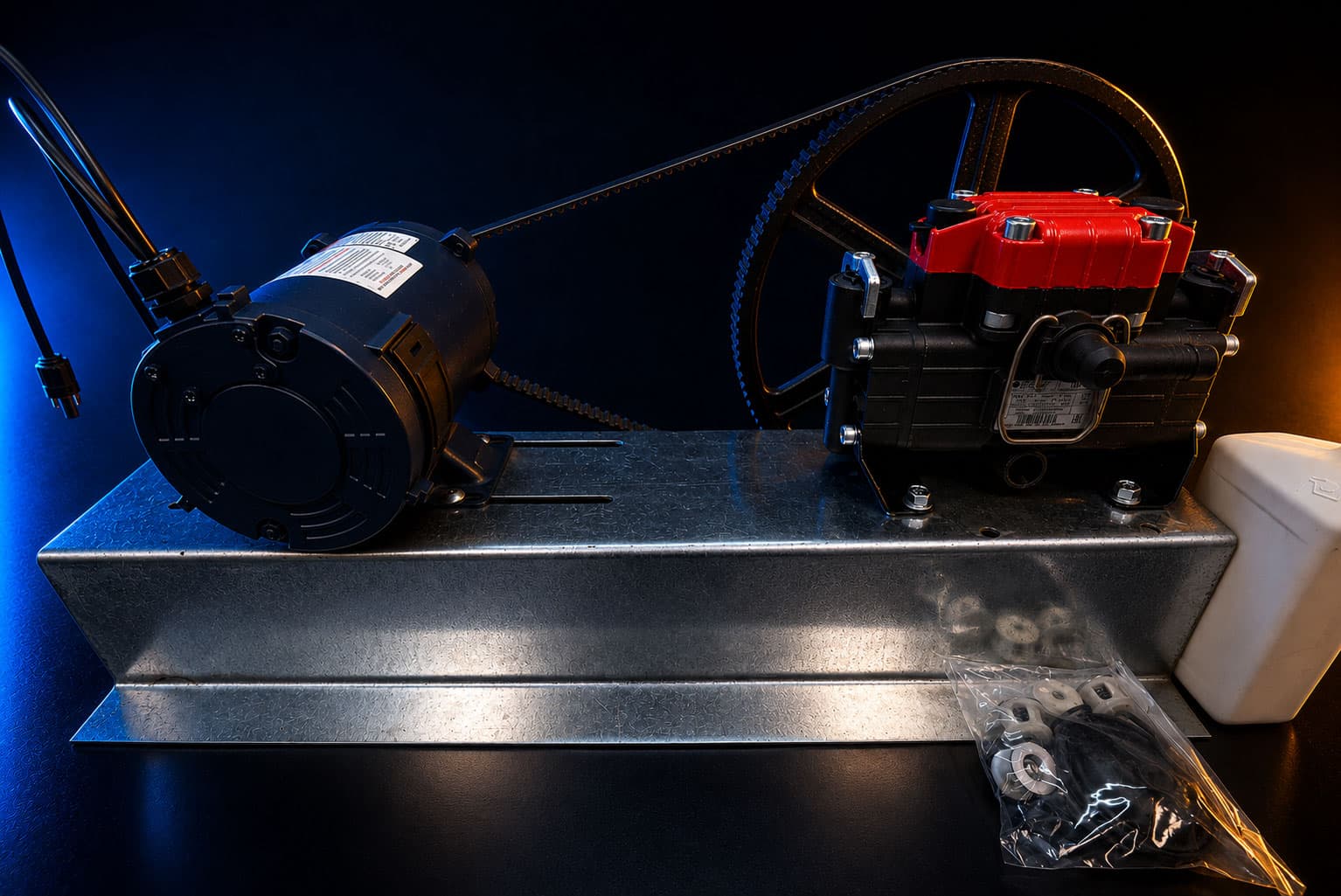

Domestic Water Boost

Engineered to pressurize off-grid homes, cabins, and eco-resorts directly from low-voltage battery banks or solar arrays, delivering reliable 65 PSI household pressure.

Provides city-standard 40–65 PSI household pressure
Whisper-quiet DC permanent magnet motor
Uses 1/3 to 1/2 the energy of conventional AC jet pumps

Max Pressure65 PSI (150 ft / 46 m)

Max Flow Rate3.5 – 4.5 GPM (13 – 17 LPM)

Operating Voltage12V, 24V, 48V DC / AC

Primary UseOff-Grid Domestic Pressure

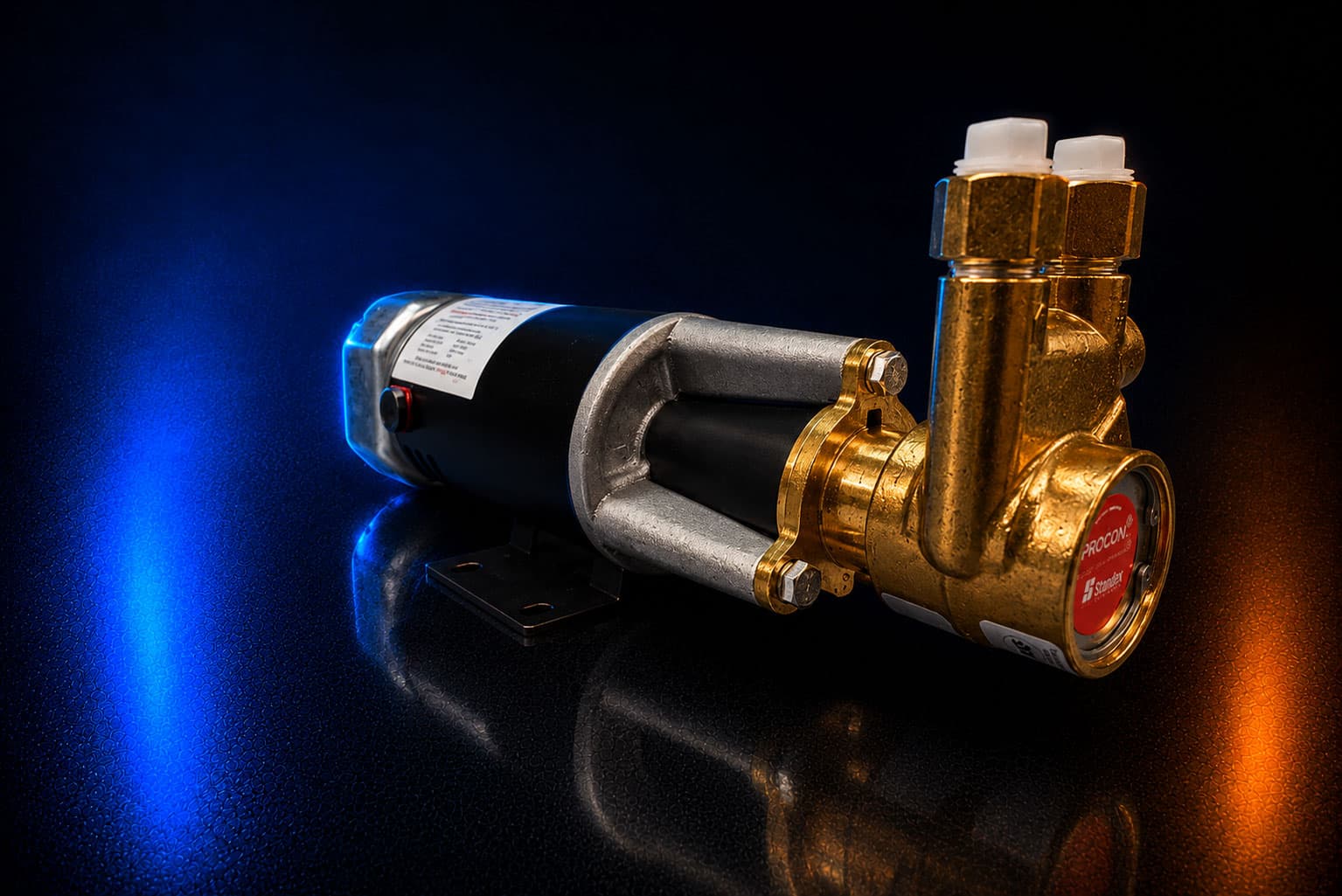

High-Volume Transfer

Designed for maximum volume from shallow water sources. Pushes up to 70 GPM for open field drip irrigation, pond circulation, thermal storage, and tank filling.

High volume output up to 70 GPM (265 LPM)
Corrosion-resistant cast iron / bronze casing
Direct solar PV-array or battery bank compatible

Max Head (TDH)90 ft (27 m) / 39 PSI

Max Flow RateUp to 70 GPM (265 LPM)

Operating Voltage12V, 24V, 48V DC

Primary UseDrip Irrigation & Aeration

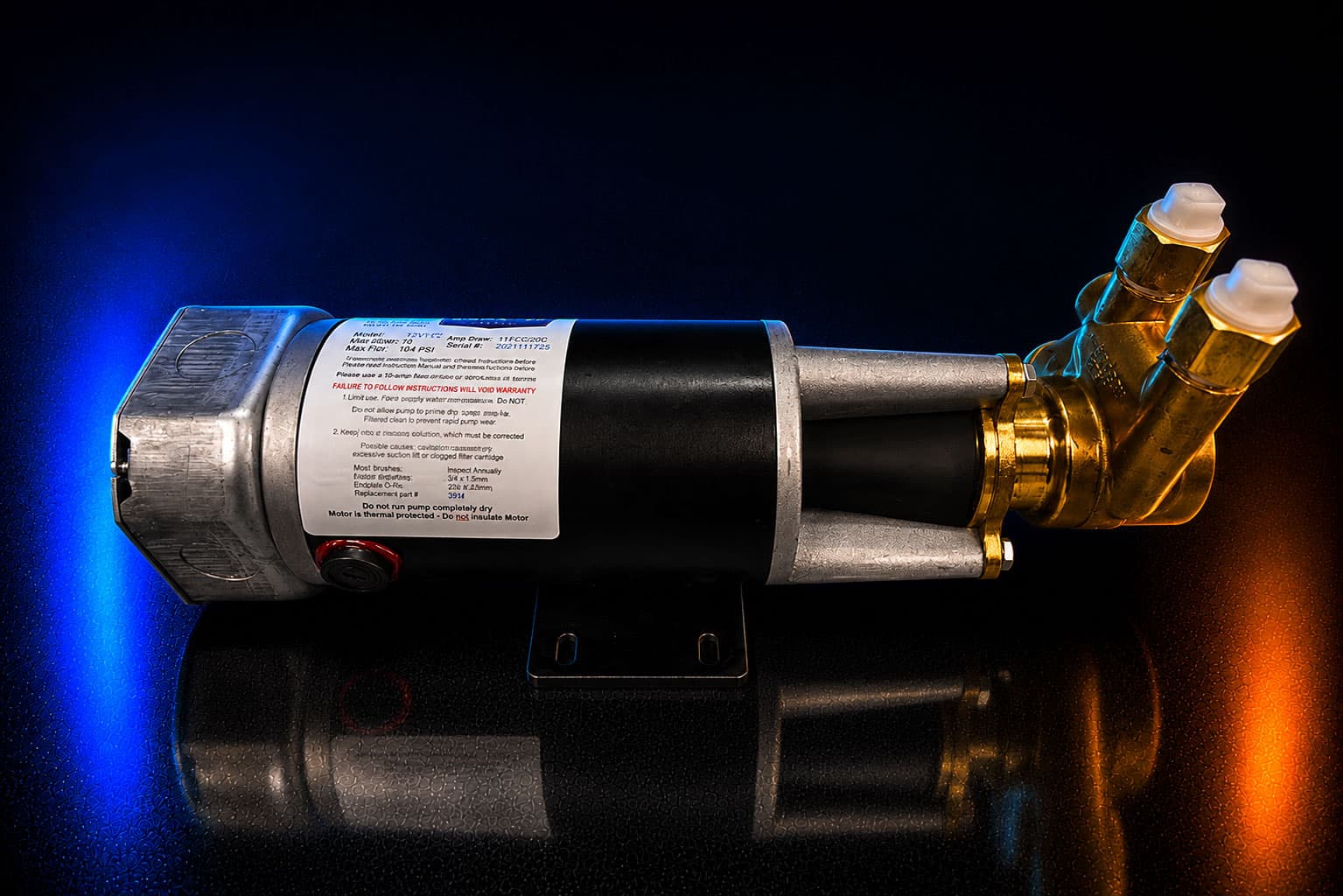

Extreme Vertical Lift

The heavy-duty solution for high-elevation livestock grazing and rugged mountainous terrain, capable of lifting water up to 960 vertical feet (293 m / 416 PSI).

Industry-leading 960 ft (293 m) TDH / 416 PSI lift
Massive cast iron mechanical power drive
Pushes water over miles of pipeline in remote landscapes

Max Head (TDH)960 ft (293 m) / 416 PSI

Max Flow Rate1.5 – 4.5 GPM (6 – 17 LPM)

Operating Voltage12V, 24V, 48V DC

Primary UseMountain Ranches & Pipelines

OEM Protection Hardware

Complete Your Installation with Genuine Accessories

Maintain continuous suction prime, trap fine sediment, and automate tank filling with our heavy-duty Foot Valve, SJE Float Switch, and EZ Install Kits.

View Accessories Catalog

System Sizing & Technical Reference

Technical Tools & Comparison Guides

Use our interactive calculators and engineering comparison tables to select the exact pump and accessory configuration for your water lift and pressure requirements.

Interactive Tool
